3 Ph Induction Gold Melting Machine

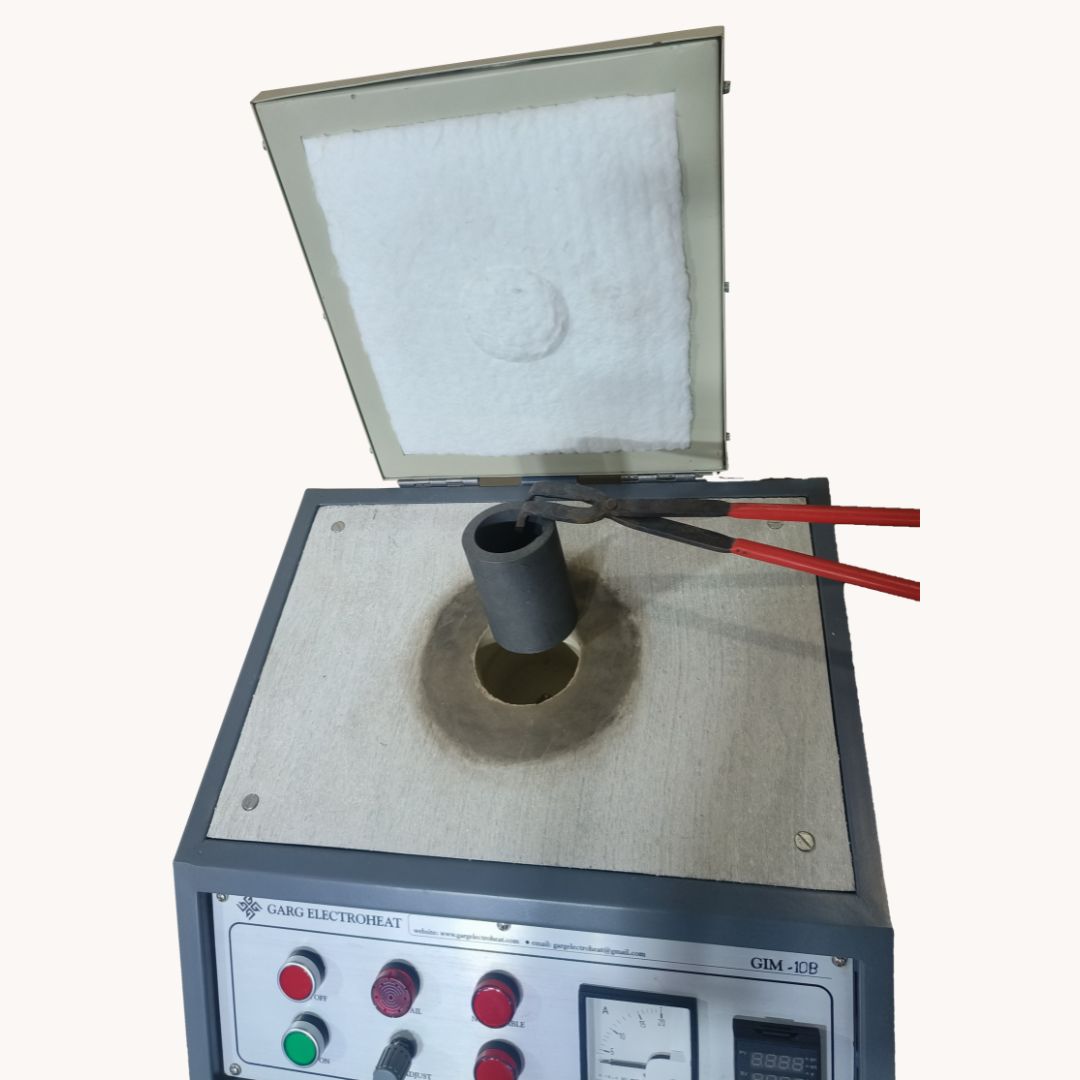

Introducing Medium Frequency Induction Gold Melting Machines. This technology enables rapid melting and homogeneous mixing of metal. Uniform heating of crucible results in low melting losses. It is made with the latest IGBT technology. This technology ensures longer and trouble-free operations. This machine emits no pollution while working. This machine can be used in Gold Casting, Gold Refining, Chain and Bangle making and retail showrooms etc. We manufacture Induction Gold Melting Machines in different capacities to suit our customer's requirements.

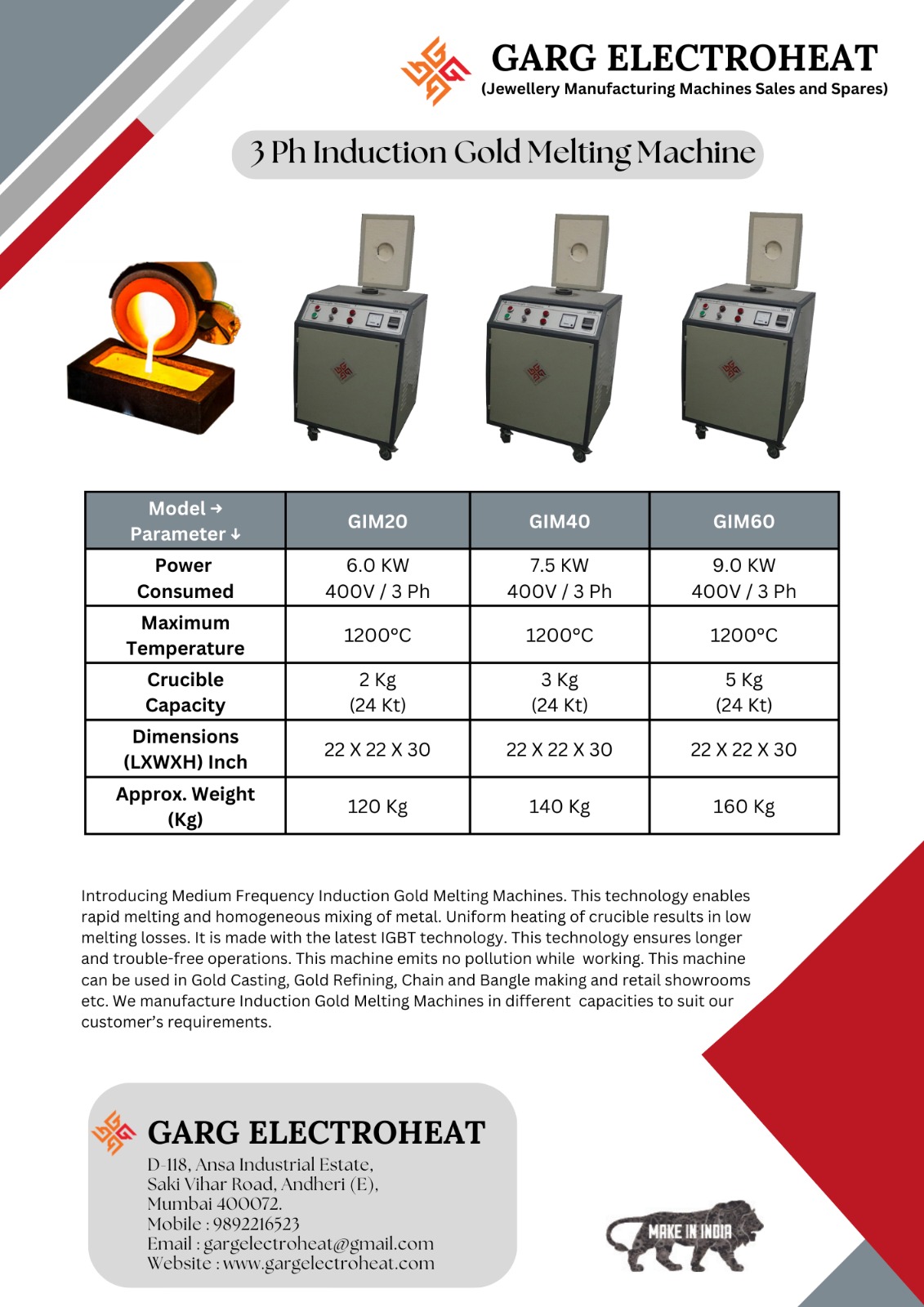

Model/ParameterGIM20GIM40GIM60
Power Consumed6.0 KW 400V / 3 Ph7.5 KW 400V / 3 Ph9.0 KW 400V / 3 Ph
Maximum Temperature1200°C1200°C1200°C
Crucible Capacity2 Kg (24 Kt)3 Kg (24 Kt)5 Kg (24 Kt)
Dimensions (LXWXH) Inch22 X 22 X 3022 X 22 X 3022 X 22 X 30
Approx. Weight (Kg)120 Kg140 Kg160 Kg
