INDUCTION GOLD MELTERS, ALLOYS
gallery/gim10n20

Gold melting is the first step of processing gold for jewellery manufacturing or refining etc. We present a high tech solution for all your metal melting requirements. This is a very versitile product for jewellery industry. Induction gold melting machine is extensively used in Gold Casting, Chain Making, Bangle Making, Refining Gold, Retail Showrooms and all other gold processing factories



We manufacture Induction Gold Melting Machines in different capacities to suit all our customer's requirements.

gallery/gim055
gallery/gim 100

GIM100T

GIM200T

Crucible Capacity

10 Kg Gold (24Kt)

20 Kg Gold (24Kt)

Power Consumed

12 KW  415V/3Ph

15 KW  415V/3Ph

Maximum Temperature

1200o C

1200o C

Approx. Melting Time

10-15 Minutes (Approx.)

10-15 Minutes (Approx.)

Water Circulation

8 - 10 LPM

8 - 10 LPM

Maximum Water Temp.

45o C

45o C

Crucible Used

Graphite

Graphite

Tilting Head

Manual / Motorised

Manual / Motorised

gallery/graining tank

GRM05

GRM10

GRM20

Crucible Capacity

500 Gm (24Kt)

1 Kg (24Kt)

2 Kg (24Kt)

Power Consumed

1 KW 230V/1Ph

1.2 KW  230V/1Ph

1.5 KW  230V/1Ph

Crucible Used

Graphite

Graphite

Graphite

Maximum Temperature

1180o C

1180o C

1180o C

Controller Type

Digital PID

Digital PID

Digital PID

Melting Time

20 to 25 Minutes

25 to 30 Minutes

25 to 30 Minutes

Dimensions (inch)

10 X 10 X 20

12 X 12 X 22

12 X 12 X 22

Weight

25 Kg

30 Kg

35 Kg

gallery/untitled-3

This Induction Gold Melting Machine (GIM05SR) is developed specially for jewellery showrooms or a very small workshop.

It is often seen that many customers turn up with their old gold for exchange at jewellery showrooms and it is very difficult to ascertain the purity of gold in old ornament. It becomes more difficult if the purity of many ornaments are different. So it is advisable to melt the old gold before purchase. It is very important for the machine to be very fast, have minimum losses, be small in size and also to be able to mix the metal uniformly.

Graining Tank

Parameters

GIM05SR

Crucible Capacity

500 gm Gold (24Kt)

Maximum Temperature

1200o C

Power Consumed

4 KW 230V/1Ph

Time for First Melt

3 - 4 Min (Approx.)

Time for subsequent melt

2 - 3 Mins (Approx.)

Controller Type

Digital PID

Protections

Over Current, Water Fail, No Crucible, Water Level

Crucible Used

Jacketed Graphite Crucible (500gm)

Maximum Water Temperature

45o C

Water Circulation

Built In

Dimensions (Inches)

18 X 18 X 30

Weight

60 Kg (Approx.)

Induction Gold Melter 0.5 Kg for Showrooms

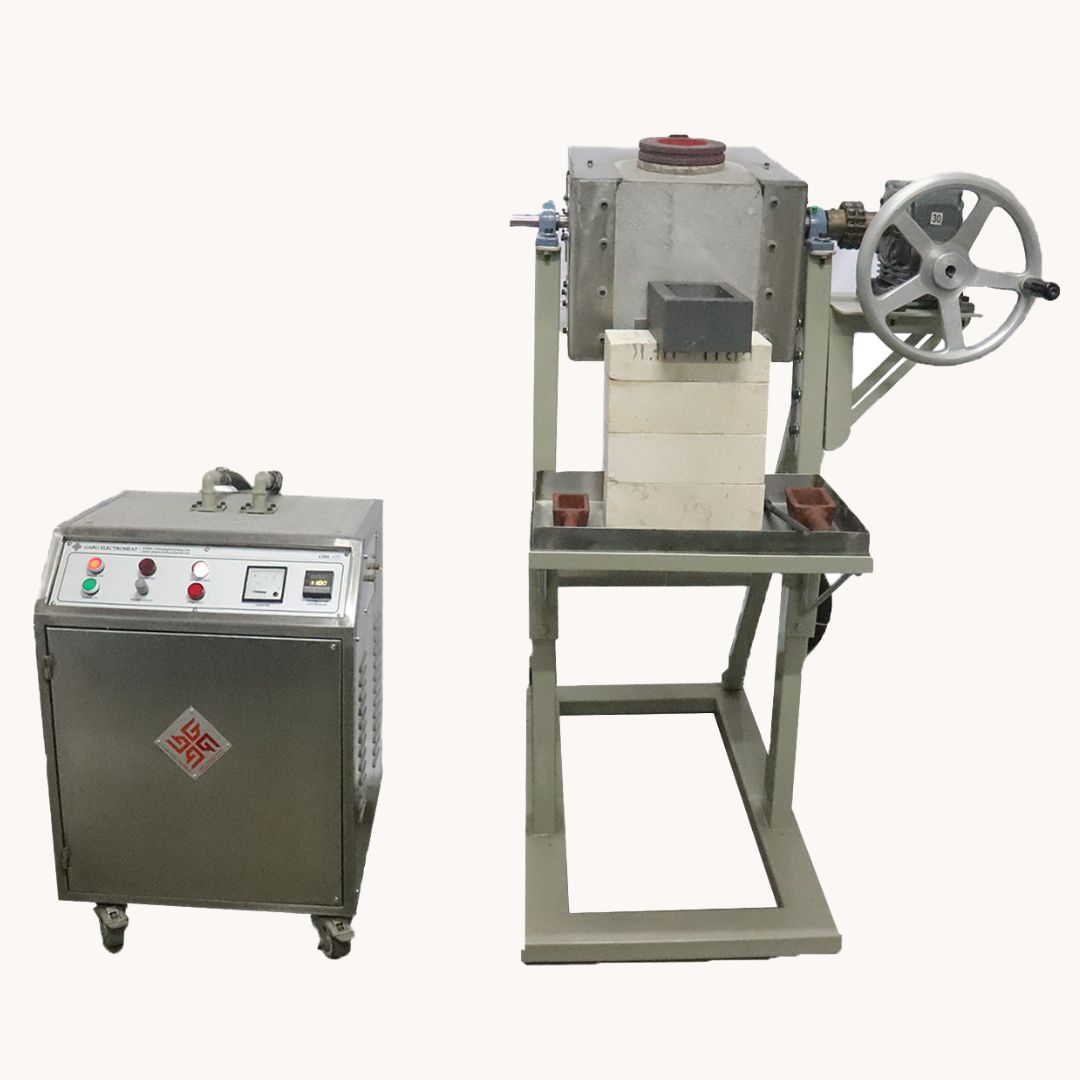

Tilting Induction Gold Melting Furnace

Large refining and minting companies process large quantities of gold. They require large capacity gold melters for their process. We present 10 Kg and 20 Kg Induction Gold Melting Furnaces for this purpose. Our machines are fitted with Tilting mechanism to ease the pouring of metal.

Our Machine reaches melting temperature within 15 minutes saving precious time. Medium frequency operation insures homogeneous mixing as required for refining process. This machine can be used for melting old scrapped gold or refined gold dust.

Very user friendly interface of the machine ensures minimum operating errors. Manual tilting process gives more controll in molten gold pouring process.

The refining companies requre to convert the initial metal into flakes for further refining process. It is a very skill oriented process where a skilled person has to pour the hot molten metal into a cold water whirpool. We have mechanised the complete process so that even an unskilled person can make the required Flakes/Grains/Shots.



This machine can be used for making pre refining shots/flakes which has large surface area. This reduces the reaction time and increases output

This machine can be used for making grains of final refined metal for further use.

This machine can be used for making Alloy Grains production. This machine can make beautiful round grains.

GGT20

GGT24

Tank Diameter

20 Inch

24 Inch

Water Capacity

100 Ltr (Approx.)

150 Ltr (Approx)

Water Pump

0.5 HP

0.75 HP

Filter

5 Microns

5 Microns

Tank Construction

Stainless Steel

Stainless Steel

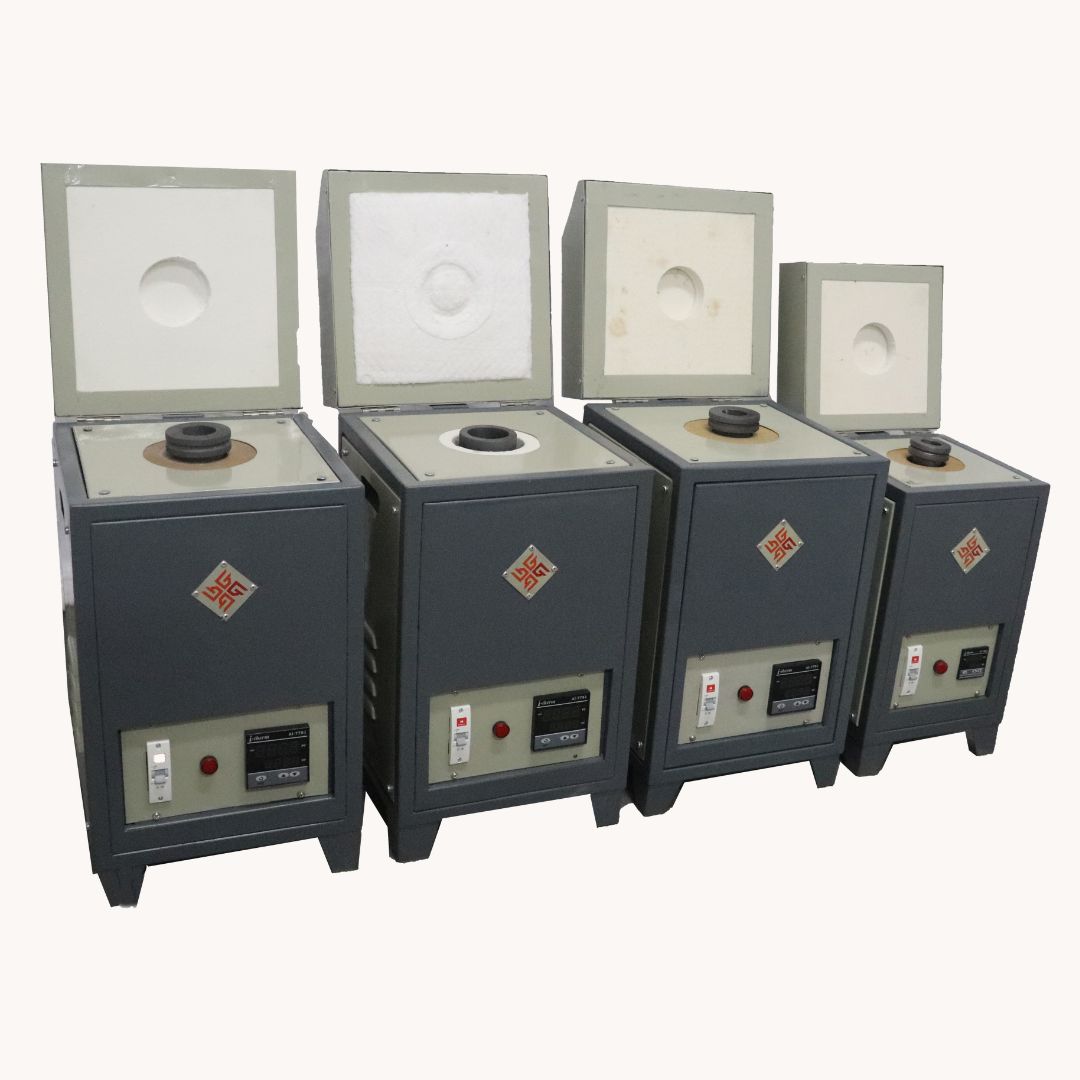

Resistance Gold Melters

Resistance Gold Melting Machine can be used in small jewellery workshops and jewellery showrooms where continuous and repeated melting is not required. This machine is a economic solution for such users. This machine can also be used in small casting set up, small, refining set up and in small jewellery shops in small towns where only one or two meltings are done in a day.

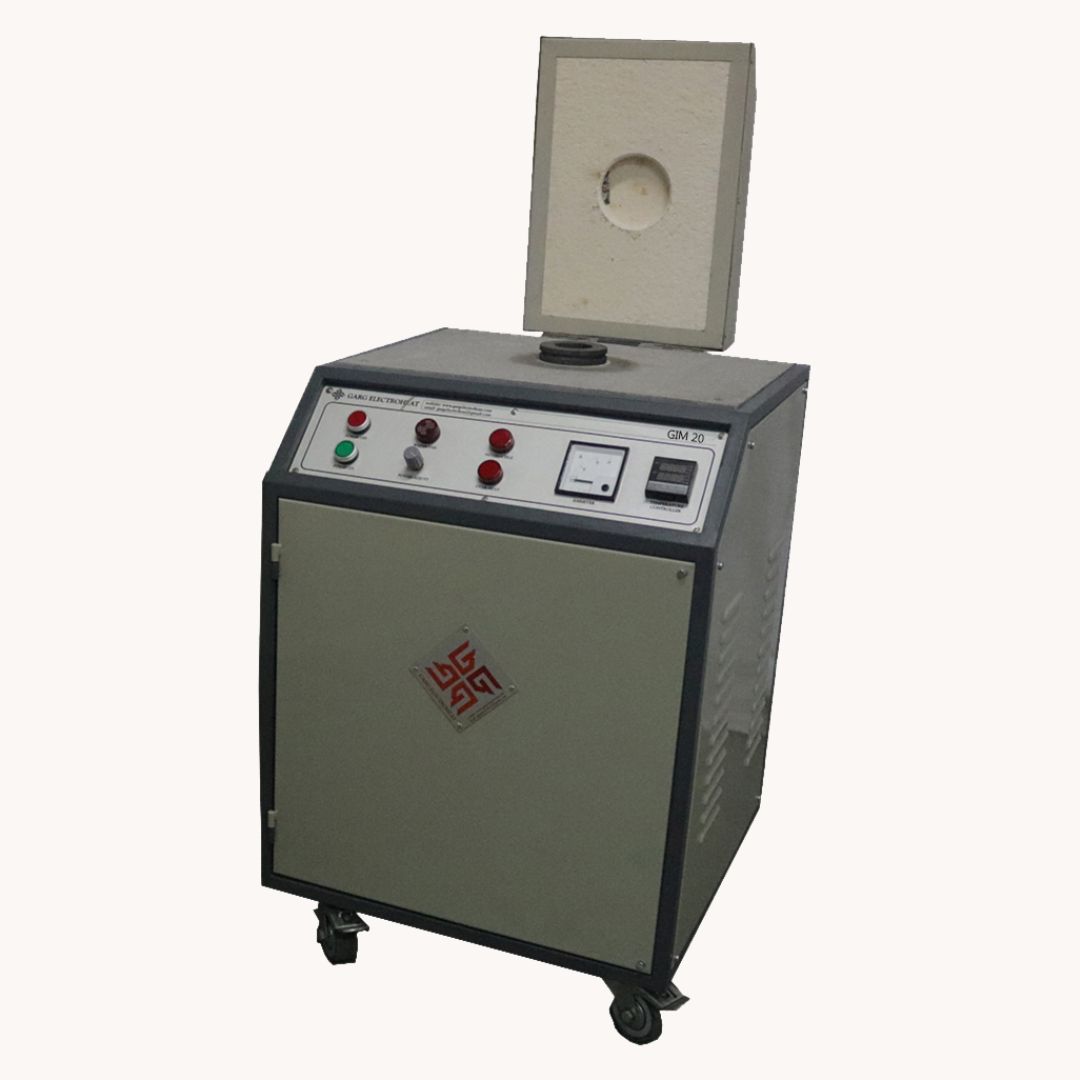

Induction Gold Melter from 1 Kg to 5 Kg

GIM10

GIM20

GIM40

 GIM60

Crucible Capacity

1 Kg Gold (24Kt)

2 Kg Gold (24Kt)

3 Kg Gold (24Kt)

5 Kg Gold (24 Kt)

Power Consumed

4 KW 230V/1Ph

6 KW 415V/3Ph

7.5 KW 415V/3Ph

9 KW 415V/3Ph

Maximum Temp.

1200o C

1200o C

1200o C

1200o C

Approx. Melting Time

8 to 10 Min.

8 to 10 Min.

8 to 10 Min.

8 to 10 Min.

Water Circulation

5 LPM

6 LPM

8 LPM

8 LPM

Maximum Water Temp.

45o C

45o C

45o C

45o C

Approximate Weight

80 Kg

100 Kg

125 Kg

150 Kg

Dimensions (inches)

18 X 18 X 30

22 X 22 X 30

22 X 22 X 30

22 X 22 X 30

gallery/g3
gallery/g3
gallery/g3
gallery/g3

Red Gold

Yellow Gold

White Gold

SILVER

SOLDERING POWDER

SOLDERING ALLOYS
