Retail Showroom Induction Gold Melting Machine
Retail Showroom Induction Gold Melting Machine
Retail Showroom Induction Gold Melting Machine thumbnail 1
Retail Showroom Induction Gold Melting Machine thumbnail 2

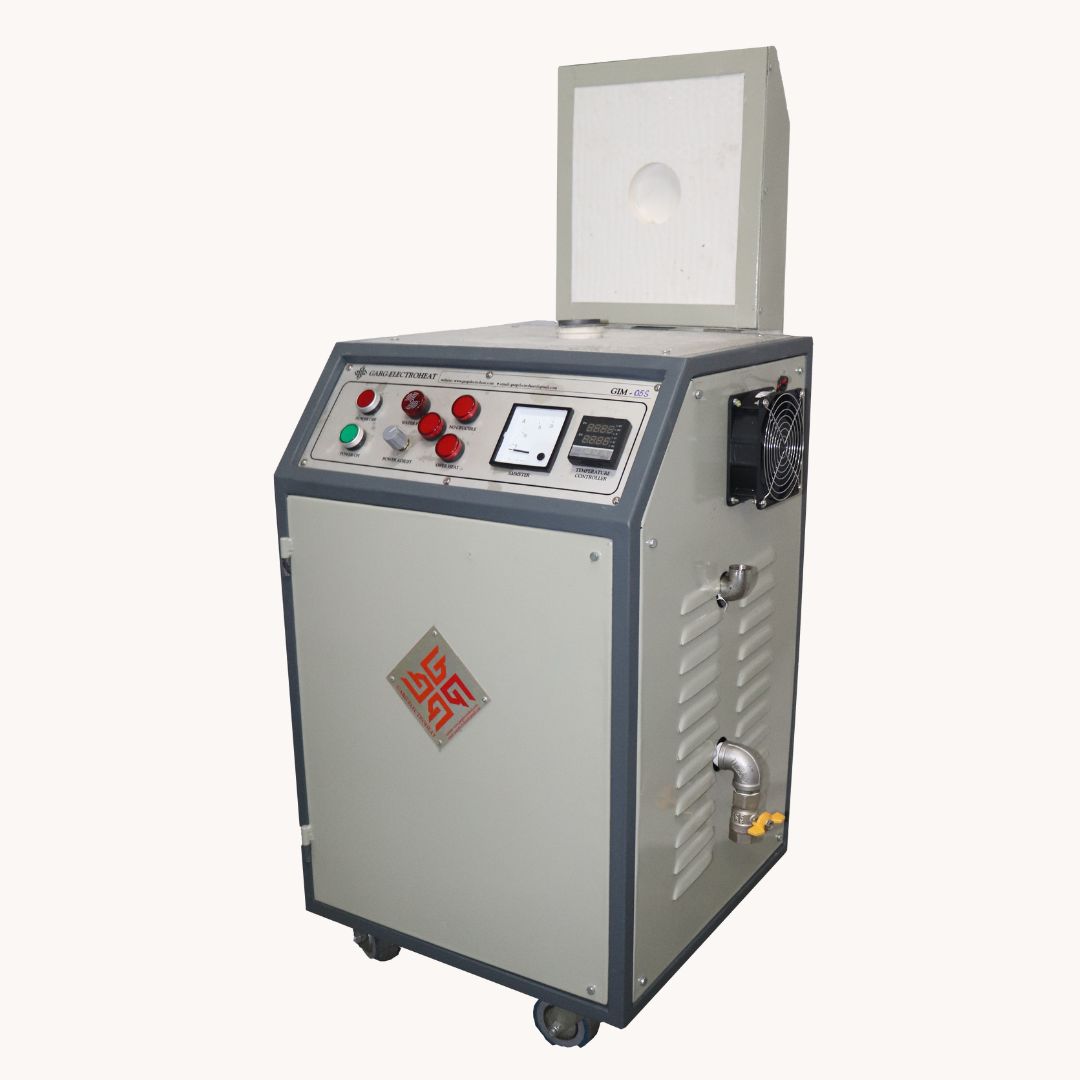

Retail Showroom Induction Gold Melting Machine

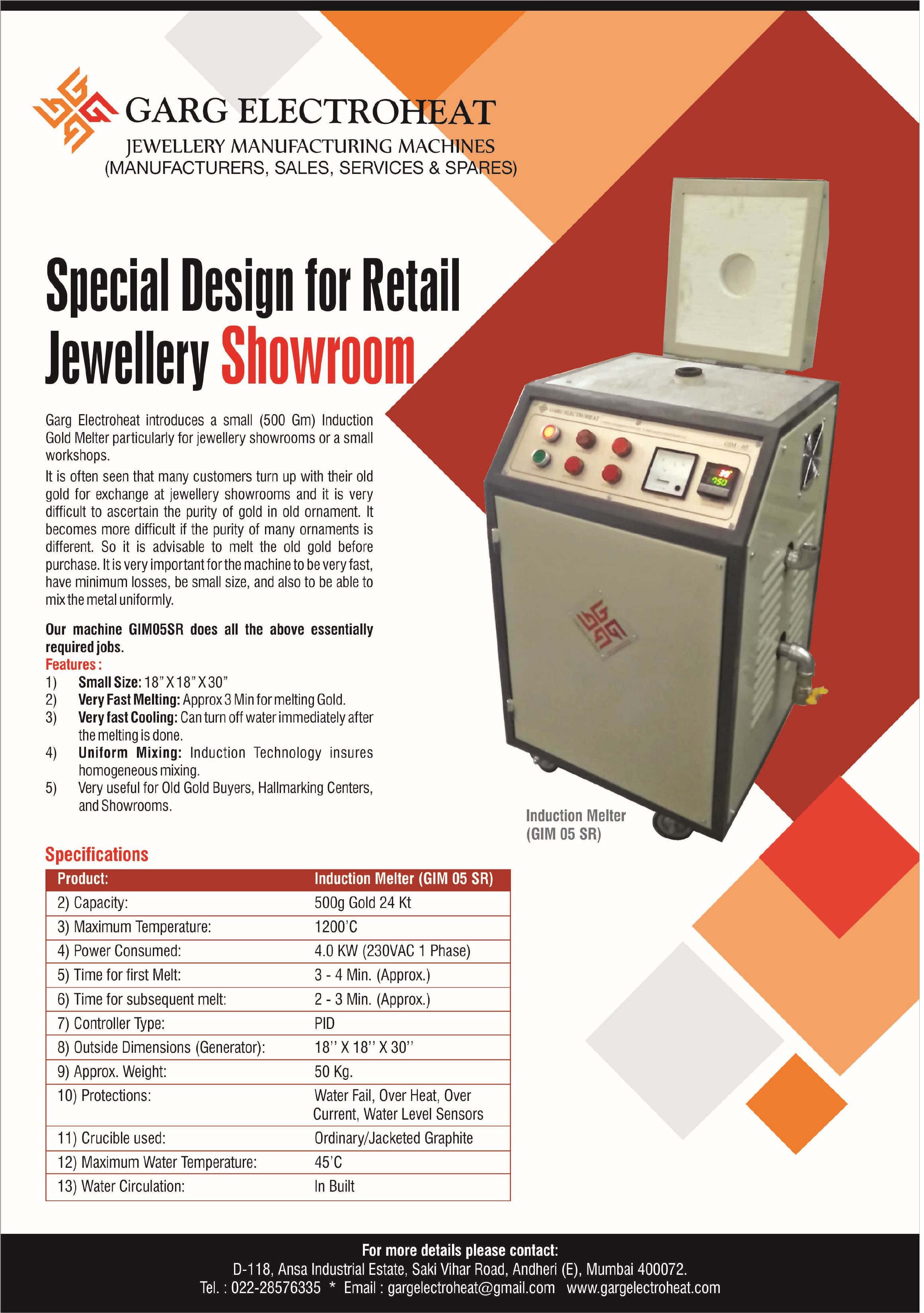

Specially designed for jewelry showrooms and small workshops, this compact 500g Induction Gold Melter is perfect for verifying old gold purity. It's often seen that customers bring old gold for exchange at jewelry showrooms, and it's challenging to ascertain the purity of gold in old ornaments, especially when multiple pieces have different purities. This machine allows fast melting with minimum losses and uniform mixing, making it ideal for old gold buyers, hallmarking centers, and showrooms.

ParameterGIM05SR
Power Consumed4.0 KW (230VAC 1 Phase)
Maximum Temperature1200°C
Crucible Capacity500g Gold 24 Kt
Dimensions (LXWXH)18" X 18" X 30"
Approx. Weight50 Kg
First Melt Time3-4 Min. (Approx.)
Subsequent Melt Time2-3 Min. (Approx.)
Controller TypePID
ProtectionsWater Fail, Over Heat, Over Current, Water Level Sensors
Water CirculationIn Built
