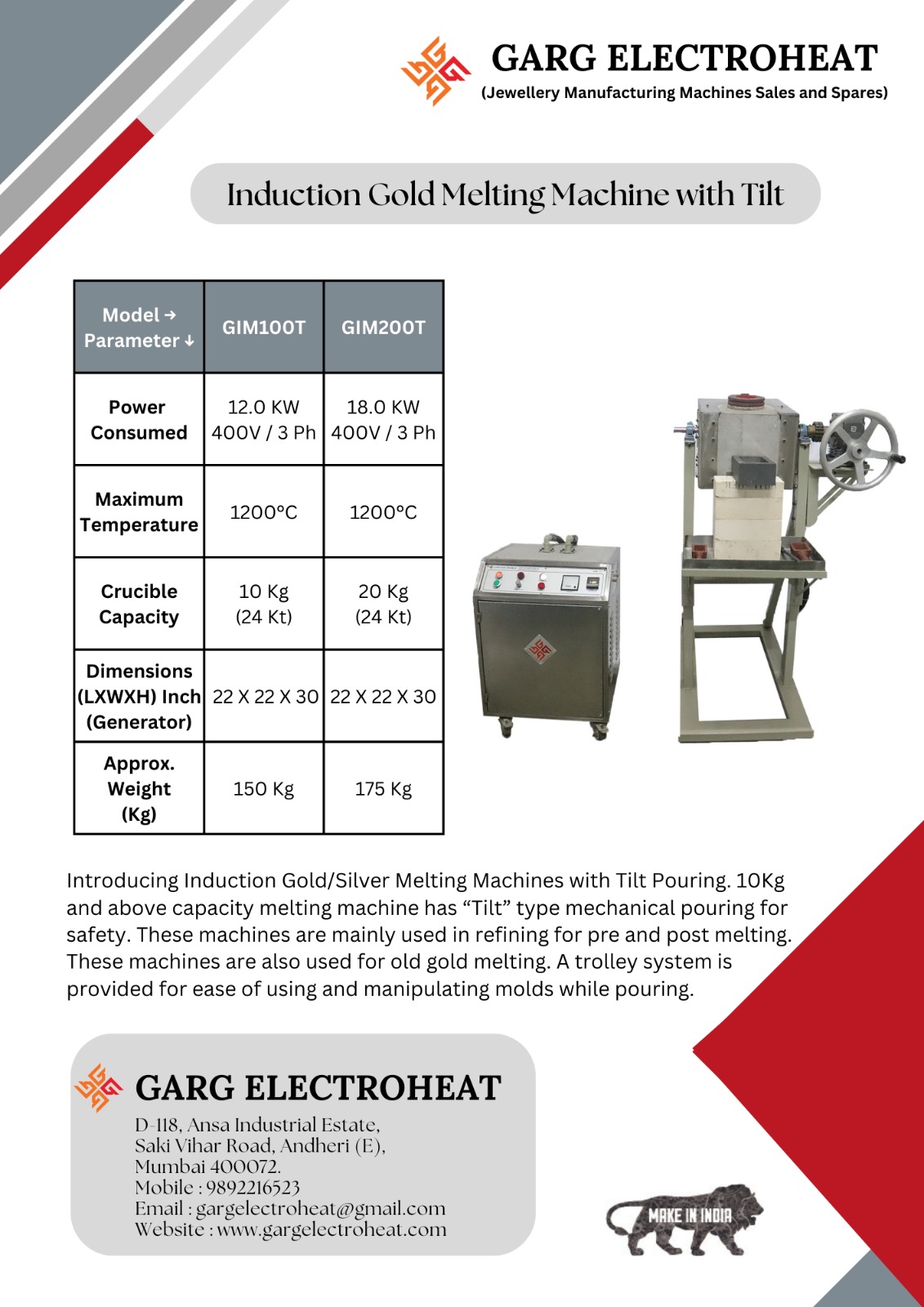

Induction Gold Melting Machine with Tilt

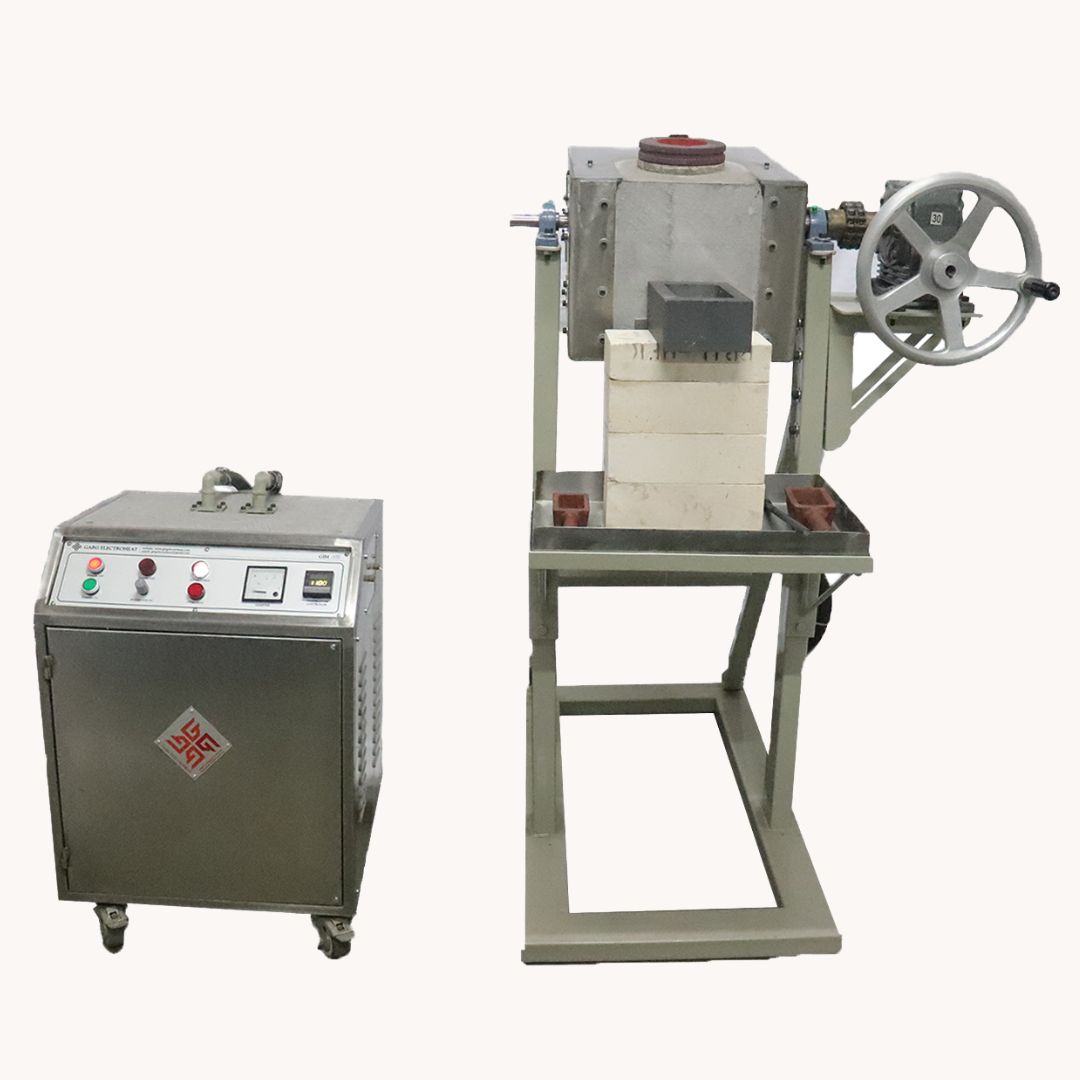

Introducing Induction Gold/Silver Melting Machines with Tilt Pouring. 10Kg and above capacity melting machine has "Tilt" type mechanical pouring for safety. These machines are mainly used in refining for pre and post melting. These machines are also used for old gold melting. A trolley system is provided for ease of using and manipulating molds while pouring.
| Model/Parameter | GIM100T | GIM200T |
|---|---|---|
| Power Consumed | 12.0 KW 400V / 3 Ph | 18.0 KW 400V / 3 Ph |
| Maximum Temperature | 1200°C | 1200°C |
| Crucible Capacity | 10 Kg (24 Kt) | 20 Kg (24 Kt) |
| Dimensions (LXWXH) Inch (Generator) | 22 X 22 X 30 | 22 X 22 X 30 |
| Approx. Weight (Kg) | 150 Kg | 175 Kg |
