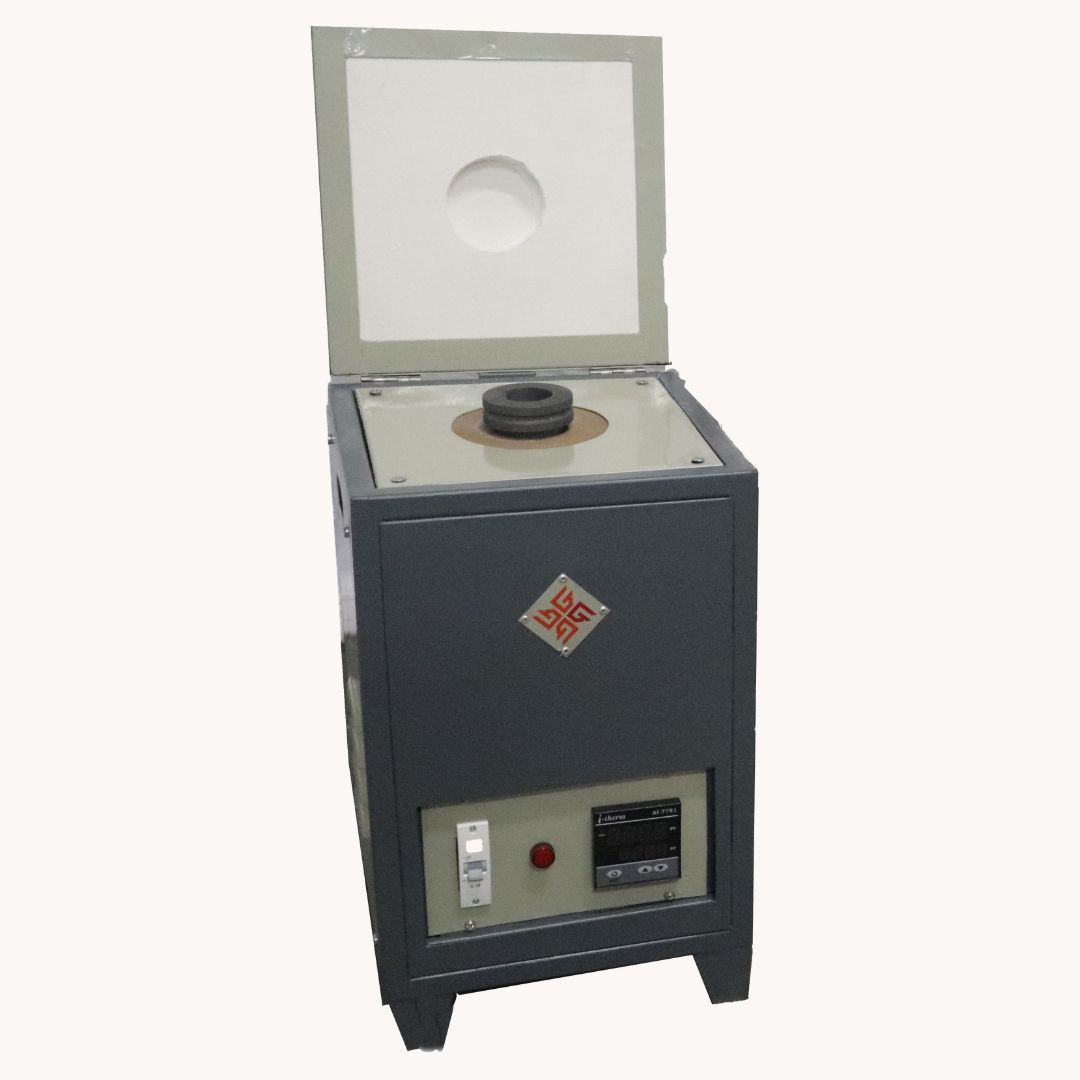

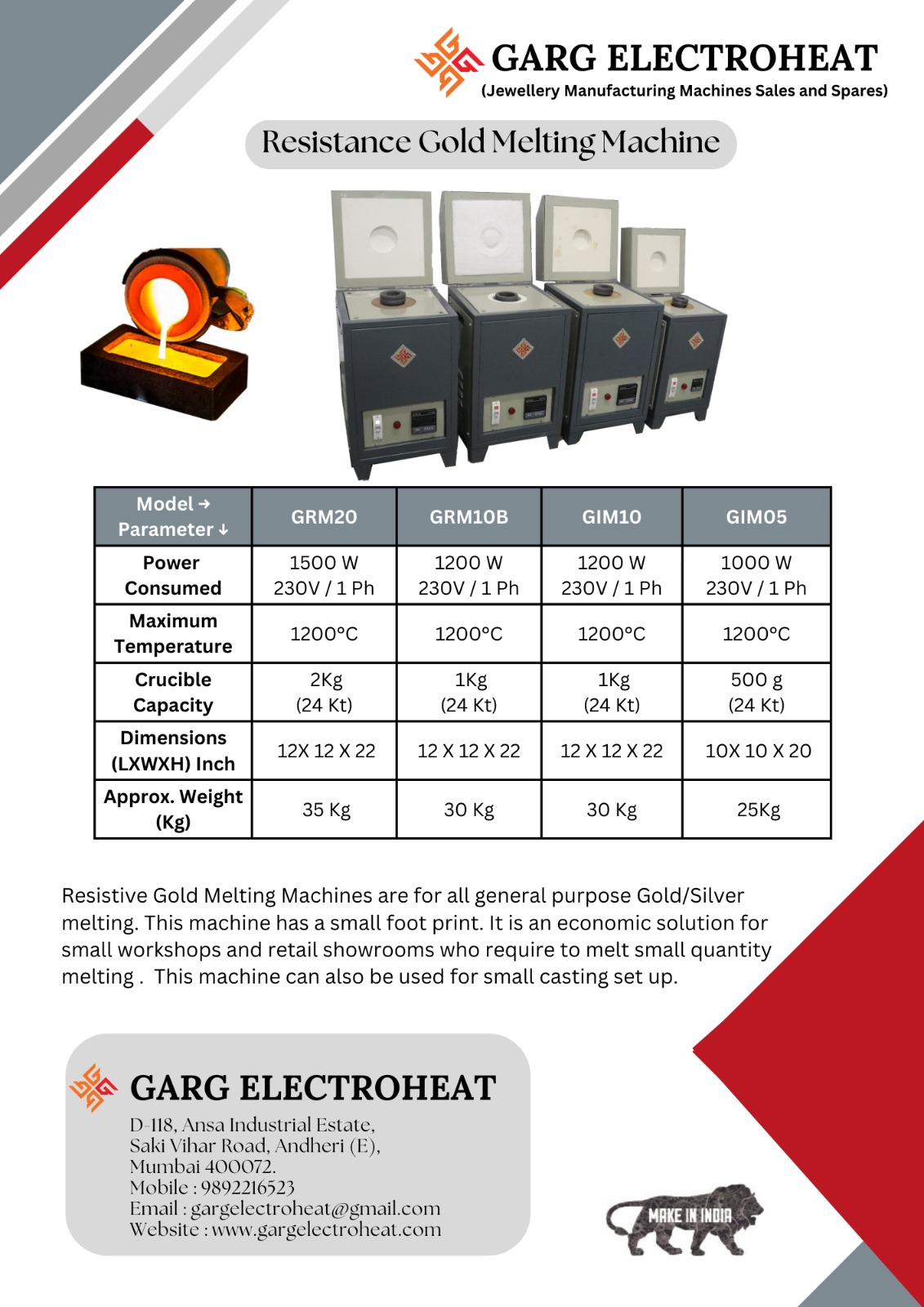

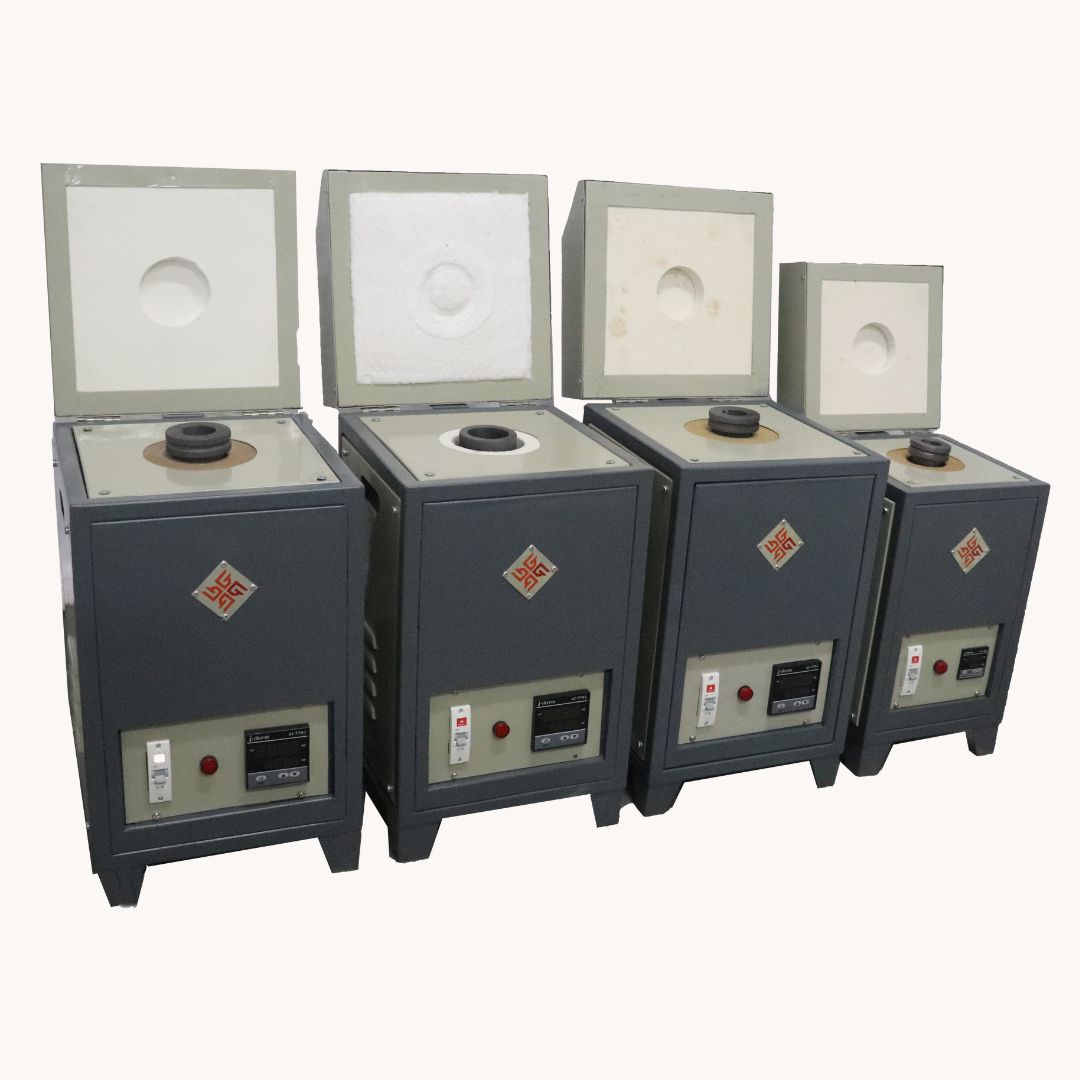

Resistance Gold Melting Machine
Resistive Gold Melting Machines are for all general purpose Gold/Silver melting. This machine has a small foot print. It is an economic solution for small workshops and retail showrooms who require to melt small quantity melting. This machine can also be used for small casting set up.
| Model/Parameter | GRM20 | GRM10B | GIM10 | GIM05 |
|---|---|---|---|---|
| Power Consumed | 1500 W 230V / 1 Ph | 1200 W 230V / 1 Ph | 1200 W 230V / 1 Ph | 1000 W 230V / 1 Ph |
| Maximum Temperature | 1200°C | 1200°C | 1200°C | 1200°C |
| Crucible Capacity | 2Kg (24 Kt) | 1Kg (24 Kt) | 1Kg (24 Kt) | 500 g (24 Kt) |
| Dimensions (LXWXH) inch | 12X 12 X 22 | 12 X 12 X 22 | 12 X 12 X 22 | 10X 10 X 20 |
| Approx. Weight (Kg) | 35 Kg | 30 Kg | 30 Kg | 25Kg |
