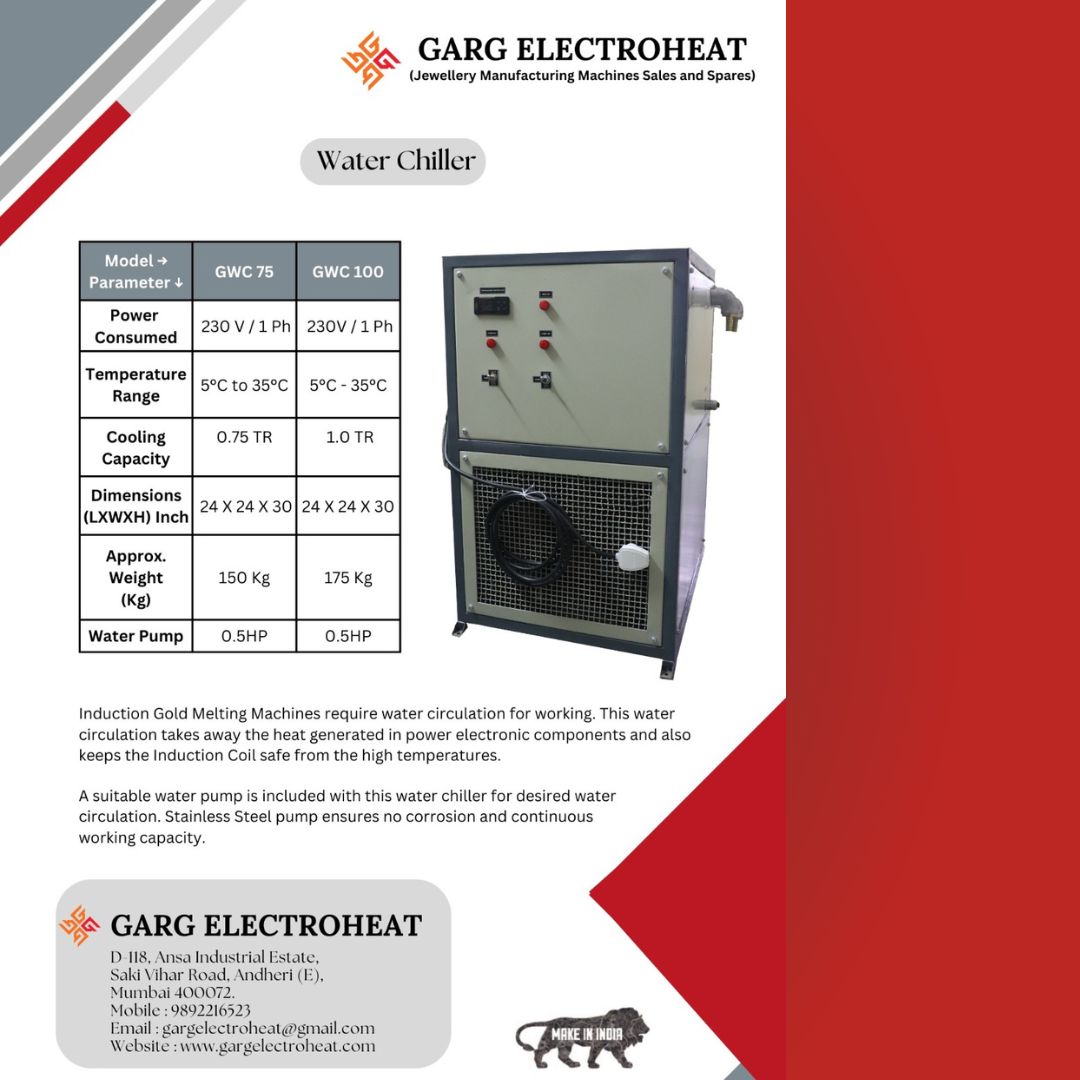

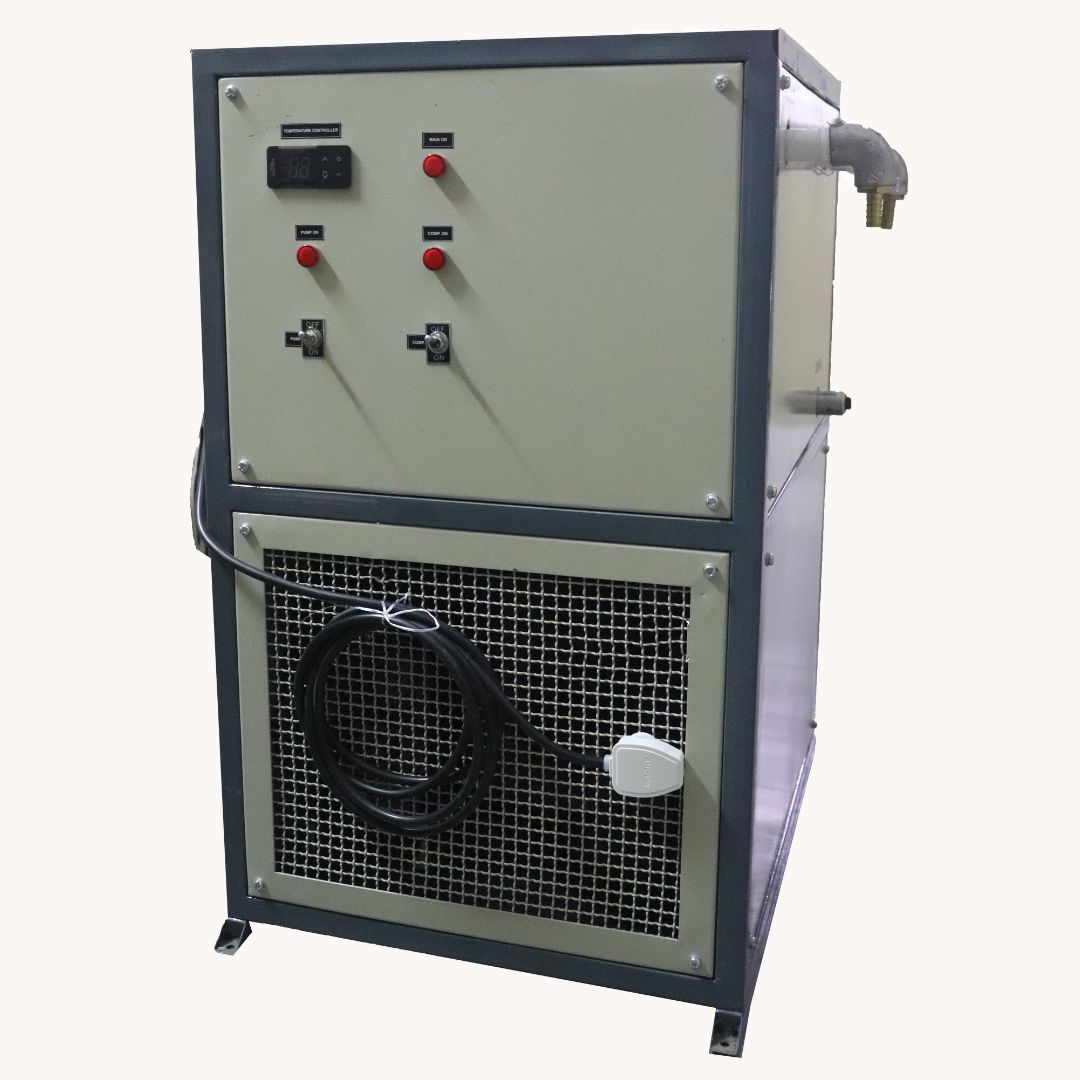

Water Chiller
Advanced water chiller system specifically designed for Induction Gold Melting Machines and similar industrial applications. The unit provides essential water circulation that efficiently dissipates heat from power electronic components and protects the Induction Coil from extreme temperatures. Features a high-quality stainless steel pump for corrosion-free operation and reliable water circulation. With adjustable temperature control ranging from 5°C to 35°C, this robust cooling system ensures consistent performance and equipment longevity. Compact design and industrial-grade construction make it ideal for continuous operation in demanding manufacturing environments.
Model/Parameter | GWC 75 | GWC 100 |
---|---|---|
Power Consumed | 230V / 1 Ph | 230V / 1 Ph |
Temperature Range | 5°C to 35°C | 5°C - 35°C |
Cooling Capacity | 0.75 TR | 1.0 TR |
Dimensions (LXWXH) inch | 24 X 24 X 30 | 24 X 24 X 30 |
Approx. Weight (Kg) | 150 Kg | 175 Kg |
Water Pump | 0.5HP | 0.5HP |
